Clock Movement with Classic Black Hands

• Hour hand: 5-1/8"L
• Minute hand: 7"L
• Hands are measured from center of mounting shaft hole to pointed tip.
•  7/16"L Shaft Mounting shaft will accommodate up to a 5/16" face (thickness of the face of the gourd)
•  "Shaft Length" refers to the threaded metal portion of the movement's central mounting shaft. This is the part that fits through your clock face (requires 11/32" shaft hole).

• Movement Dimension: 2-1/8" x 2-1/8" x 5/8"D.
• Requires a AA battery - not included

• IMPORTANT: Be sure that installed hands are parallel to each other so that the minute hand does not get stuck on the hour hand.

• KITS INCLUDE:  clock hands, mounting hardware, metal hanger & installation instructions.

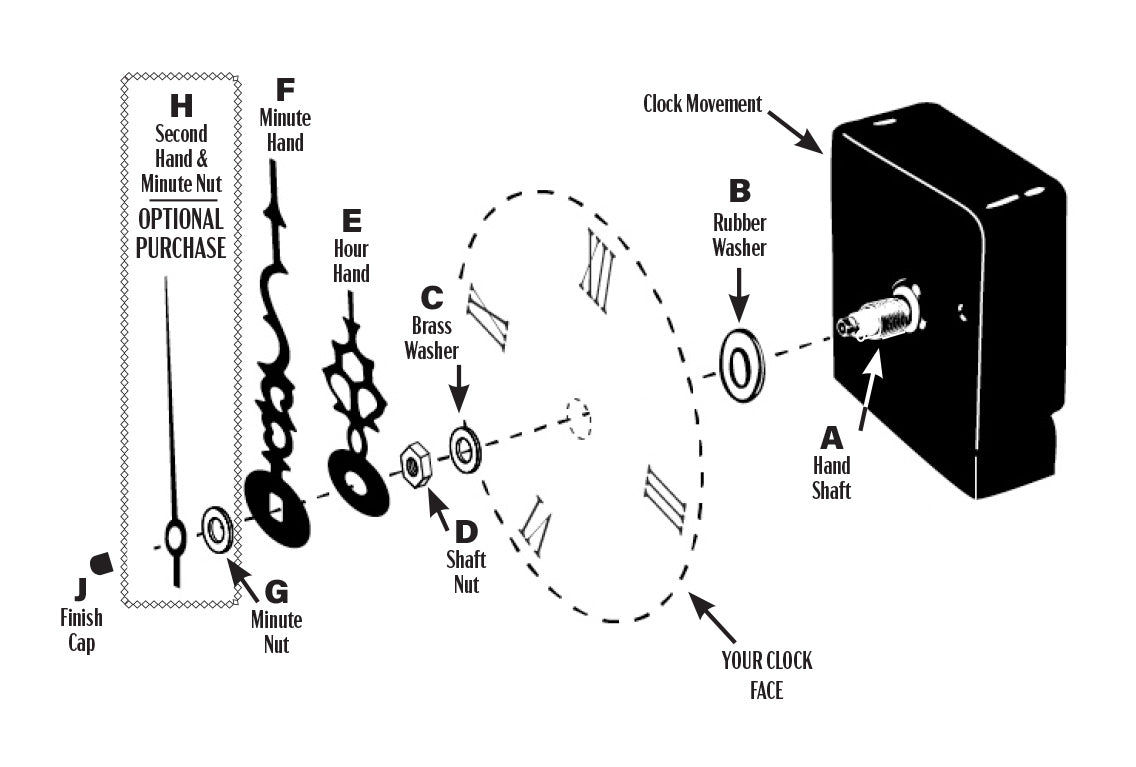

Assembling the TAKANE Clock Movement:

Slip the rubber washer over the hand shaft.
Now insert the shaft through the back side of your clock face.
Slip the brass washer over the hand shaft.
Next, add the shaft nut and gently use your fingers to secure it in place. DO NOT OVER-TIGHTEN.
Install the hour hand onto the shaft. The circular hole may have a collar which should face DOWN toward the movement.
Place the minute hand, with a slightly oblong oval hole, on the end of the mounting shaft.
You can finish the assembly with the closed end nut, or “finish cap.”
